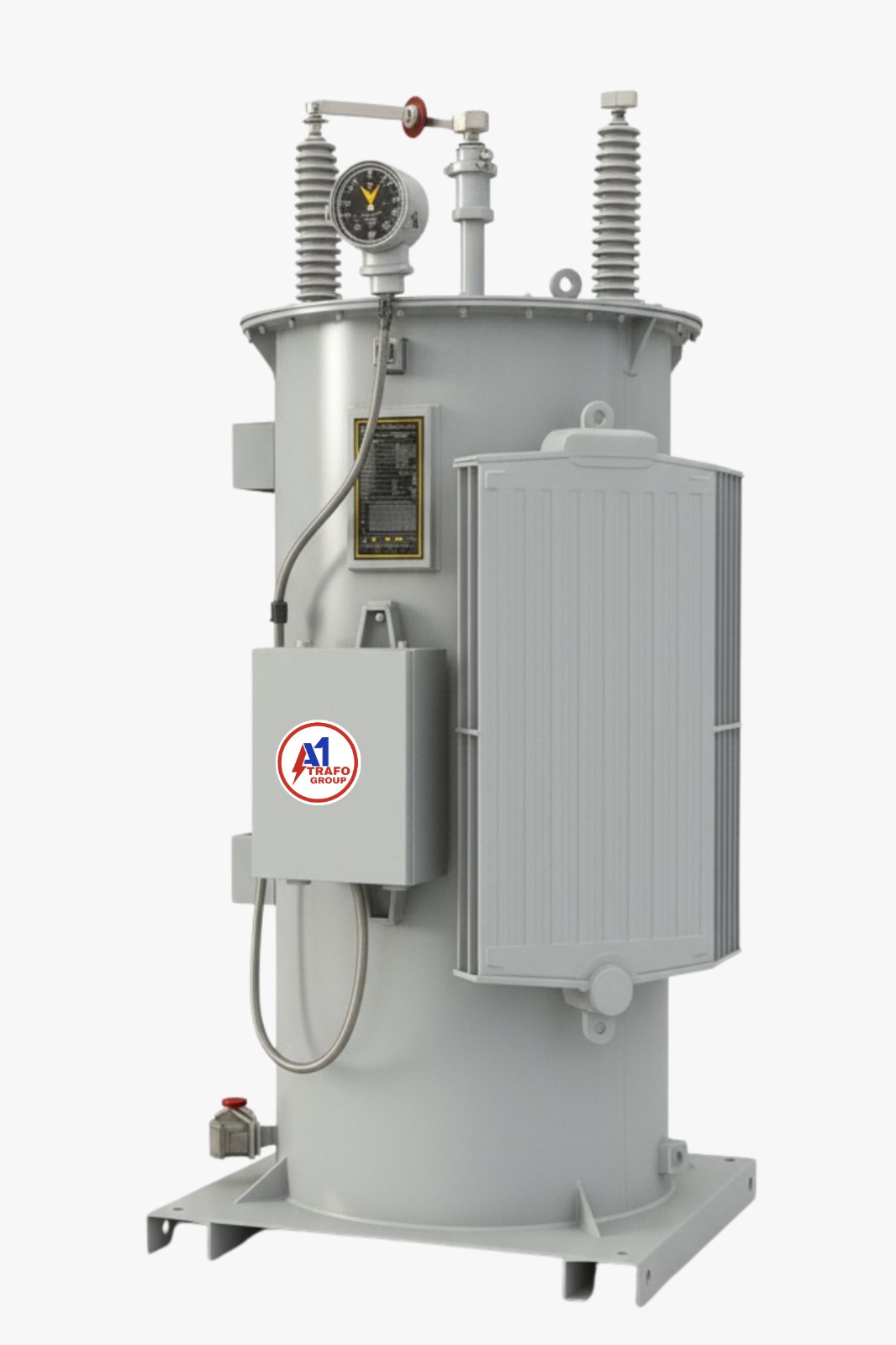

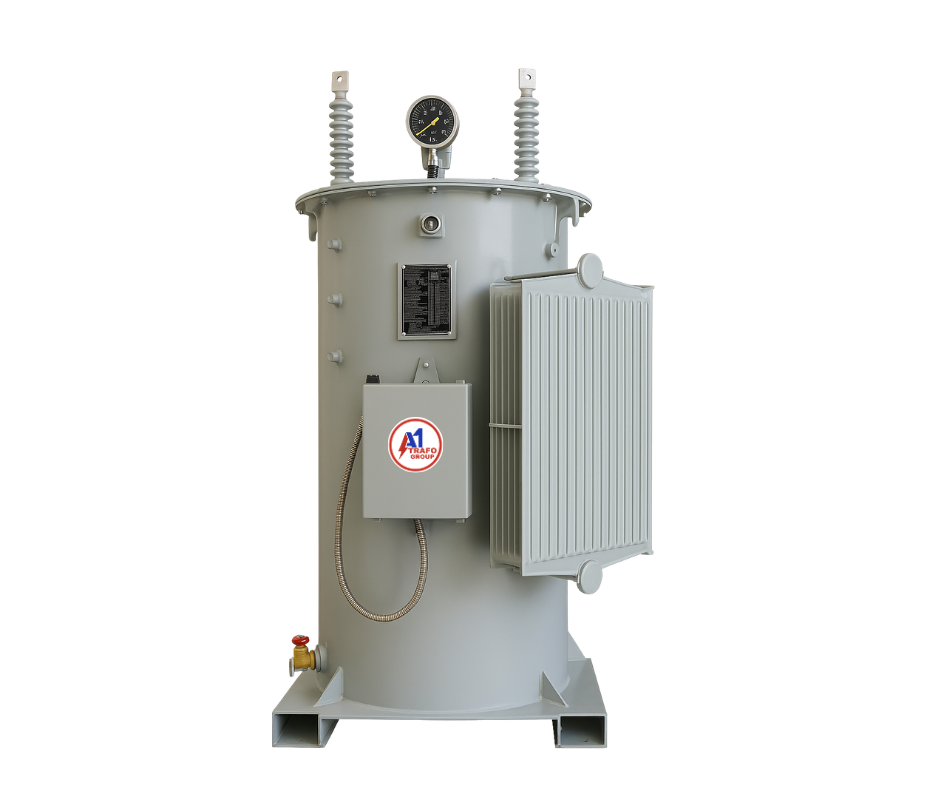

Single phase step voltage regulator

SVR:32 steps, up to 33 KV, 500 A.

Voltage regulators are the most commonly used regulating equipment in distribution systems. The function of a voltage regulator is to measure the line voltage and automatically adjust it to a preset level. Voltage regulators are effective in automatically correcting high-voltage and low-voltage conditions. They are simple to apply, and they provide voltage correction, within close tolerances, needed to maintain the desired voltage levels.

What Is A Voltage Regulator?

A device which will provide a constant voltage output under varying input voltages and load currents.

By standards,

-regulates +10% voltage and -10% voltage.

Total of 32 steps

-16 steps in the Raise direction, 16 steps in the lower direction, and one Neutral position.
